user story mapping

Gergő Pintér, PhD

gergo.pinter@uni-corvinus.hu

the problem

  • the backlog difficult to prioritize
    • because it’s a list
    • difficult to identify dependencies
      • it quickly becomes a network
    • already at this point the tasks need detailed understanding
  • the backlog is one dimensional
    • which is priority

dependencies, again

after dependencies are identified ordering isn’t so difficult

dependencies, again

user story mapping

  • popularized by Jeff Patton
    • original blog post
      • The new user story backlog is a map [1]
    • User Story Mapping, O’Reilly, 2014, ISBN-13: 978-1491904909 [2]
  • performed in workshops including
    • users,
    • (UI) designers,
    • developers,
    • testers,
    • and other stakeholders
  • build a shared understanding of the product and a common language

other benefits of USM

  • helps to understand and prioritise what the user needs
  • it can discussed with the customer / users → feedback
  • highlights assumptions and risks that might be missed by a single viewpoint
  • uncovering dependencies earlier and faster with multiple viewpoints

user story map

  • two dimensional
  • uses the user’s perspective to tell a story / narrative
  • the user want to achieve a goal
  • which consists of one or many activities

users’ perspective

the USM uses the user’s perspective to tell a story / narrative

so the developers have to imagine how the user would use the eventually implemented software

the most important thing in [UI/UX] design is empathy – Scott Jenson

readme-driven development

readme ~ user manual, but brief, concise

  • before you write any code or tests or behaviors or stories or anything
  • document how a user would use the implemented software
  • you will know what you need to implement
  • a lot simpler to have a discussion based on something written down

source: Readme Driven Development
by Tom Preston-Werner [3]

user story map

activity

  • is sort of a big thing that people do
  • that can have multiple steps,
  • and doesn’t always have a precise workflow

activities are still user stories with roles

As a social media platform user
I want to follow users
so I can keep up with their posts.

user task

  • in agile a “task” refers to the things that developers do
    • to finish user stories
  • user story mapping considers the user,
    • so a user task is what a user needs to do to complete an activity
for example (follow a user)
  1. search for a user
  2. add user to the followed list

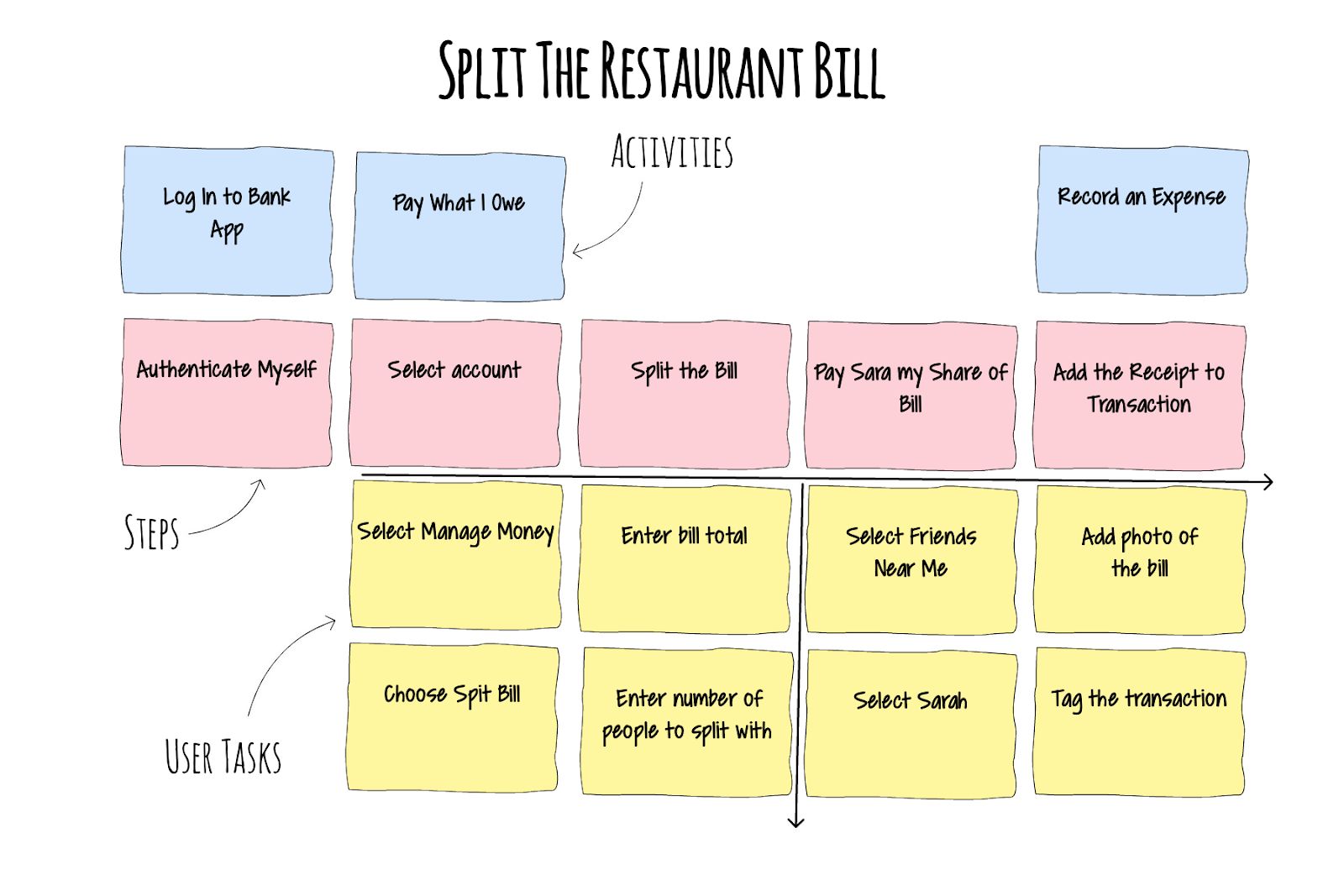

from “Quickstart Guide to User Story Mapping” by Eben Halford | CC BY-SA 2.5

reading: Quickstart Guide to User Story Mapping

user story map as a document

  • not final, not set in stone
  • it is possible and encouraged to adjust
    as the more knowledge is acquired about the software
    • versioning
  • you are free to move notes up and down
    • change the role (activity ↔︎ user task)

backbone, skeleton, ribs

top-down structure, high-level overview first, then adding details

iterations

user roles / goals

  • there can be several different types of user
    • a.k.a., role / persona
  • each one could have a different reason (goal) for their activities
  • as a [type of user],
  • I want to [action/function]
  • in order to [reach goal]

story mapping steps

  1. set the context, decide on the goal
    • who is the user we are mapping for?
    • what are they trying to achieve with their activity and why?
    • what is the outcome they seek and how will we help them to achieve it?
  2. tell a story
    • go wide not deep, details come later
    • focus on the narrative flow
  3. create the backbone of steps
  4. define user tasks for each step

based on the Quickstart Guide to User Story Mapping

story mapping steps

  1. set the context, decide on the goal
  2. tell a story
  3. create the backbone of steps
    • activities as a collection of things you do to get the goal done
    • things that get your activity done are steps
    • start your steps with a verb, an action
    • the order of steps may differ by users, think of an ideal sequence
    • discuss different use cases as they come up
  4. define user tasks for each step
    • they can include sub-tasks, alternative tasks, exceptions, details and even UX notes
    • if a step has many tasks, is may worth to split into separate steps

based on the Quickstart Guide to User Story Mapping

social media platform example – sign-up

sign-up feature from a minimal social media platform

social media platform example – user management

user management features from a social media platform v2

social media platform example – create content

create content feature from a social media platform v2

social media platform - example

user story mapping mistakes

getting bogged down in the details

more from Jeff Patton: 5 story mapping mistakes

flashcard app example

  • let’s say the idea of the progressbar came later
    • but feels strongly connected to the previous card

  • the you freely merge the two
  • it’s fine to add every idea then do some cleaning

flashcard app example

  • software doesn’t matter, cards are just rectangles
    • collaborative work does

  • the color doesn’t matter to much
    • the blue-pink-yellow will be used for consistency

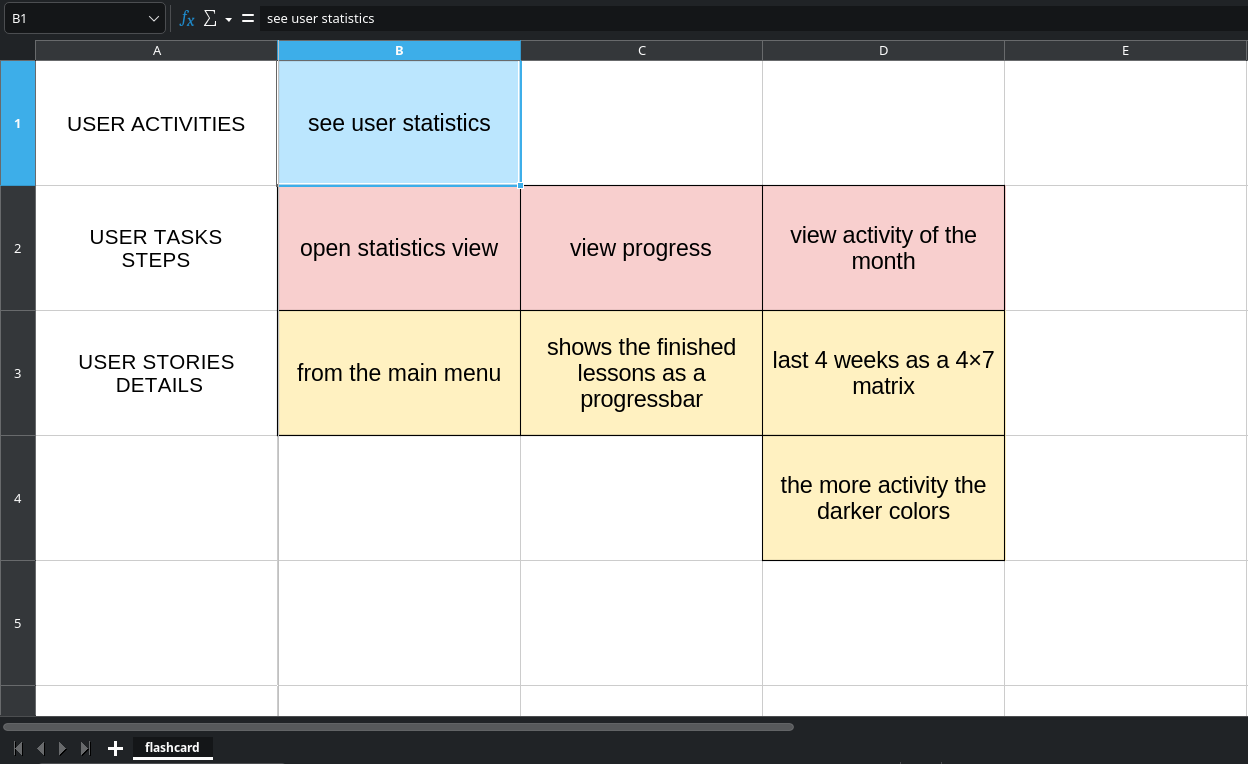

speadsheet as a user story map

how is user story mapping agile?

  • performed in workshops with diverse teams
    • the most effective method of conveying information is face-to-face conversation
    • cross functional teams
  • welcomes changing requirements
    • the user story map is a living document
    • content is not set in stone
  • USM can discussed with the customer / users
    • easy to understand and gain feedback

user story mapping – summary

user story mapping

  • performed in workshop
  • build a shared understanding

user story map

  • three levels
    • activities (backbone)
      • big thing that users do
      • has multiple steps
      • not always has a workflow
      • has roles
    • steps (skeleton)
    • details
  • zooms from an overview to details
  • not a flowchart
  • multiple interations
    • living document
    • versions

references

[1]
J. Patton, “The new user story backlog is a map.” https://jpattonassociates.com/the-new-backlog/ , 08-Oct-2008.
[2]
J. Patton and P. Economy, User story mapping: Discover the whole story, build the right product. " O’Reilly Media, Inc.", 2014.
[3]
T. Preston-Werner, “Readme driven development.” https://tom.preston-werner.com/2010/08/23/readme-driven-development.html , 23-Aug-2010.
