implementation planning
gergo.pinter@uni-corvinus.hu
conduct research
- during the requirement analysis some data was already collected
- regarding functional and non-functional requirements
- interviews, questionnaires, telemetry, etc.
- some research may be needed to select the tools and frameworks
during the implementation
- do some experiments with different libraries
learning could be a task
- you may need to work a technology / framework / language that you are not familiar with
- or you just have to learn a new codebase
- calculate with learning during the planning
fail fast
~ indirect proof, proof of contradiction
- the requirements are known
- try to eliminate candidates as soon as possible
- unmaintained
- cannot handle certain file formats
- target language / version is not supported
- then move on the next one
- document findings (~ decision records)
minimal workable example
- when you have a promising candidate, write code to try it out in practice
- start new project
(for every candidate / experiment)- simple, clean
- no interference, side effects
- eliminate unknown variables
- document research findings (~ decision records)
Stackoverflow guideline on How to create a Minimal, Reproducible Example

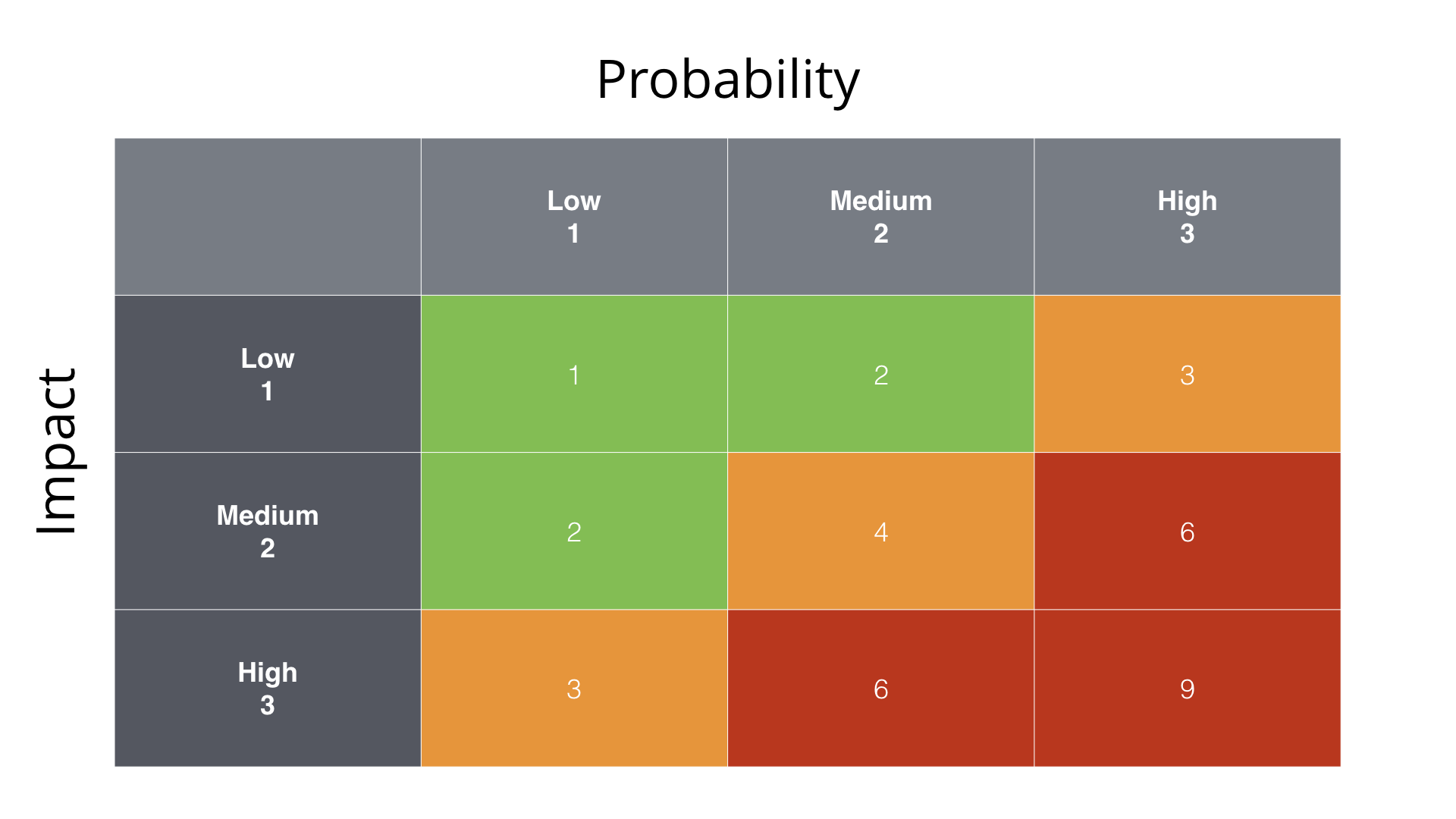

prioritize risks
- often difficult to prioritise which risks you should take care of
- one way to do this is to map risks to a matrix
- where you evaluate
- the probability: how likely is it that the risk will happen?
- and the impact: what is the negative impact if the risk does occur?
from riskstorming.com | CC BY 4.0
risk register
- a risk register is a document used as a risk management tool
- contains all identified risks with additional information
- e.g., nature of the risk, probability, impact, reference and owner, mitigation measures
- it can be displayed as a table or as a scatterplot
source Wikipedia [2]
risk storming
- visual and collaborative risk identification technique
- created by Simon Brown
- author of C4 model
- motivation: often only one person evaluated risks
- ~ four eyes see more than two
- risk evaluation should be collaborative activity
this chapter is based on riskstorming.com | CC BY 4.0
steps of risk storming
- converge the risks on the diagrams
- ask everyone to place their sticky notes onto the diagrams,
- sticking them in close to the area where the risk has been identified
- review and summarise the risks
- review and summarise the output,
- especially focusing on risks that only one person identified,
- or risks where multiple people disgree on the priority
from riskstorming.com | CC BY 4.0
walking skeleton
A Walking Skeleton is a tiny implementation of the system that performs a small end-to-end function. It need not use the final architecture, but it should link together the main architectural components. The architecture and the functionality can then evolve in parallel.
– Alistair Cockburn
it is a pattern intended to kick-start test driven development (later in the course)
via wiki.c2.com
risk storming example
schedule milestones
- visualize project milestones
- Gantt chart
- keep the entire team posted
- pay attention to holidays
- multiple countries in the case of an international team
- things won’t go as planned, so
- add safety margin (wiggle room)
- e.g., an extra week before deadline for fixing bugs
assign responsibilities and tasks
- every task you want to make done should have exactly one person
responsible
- no assignee – no one will do it
- more than one – “I though the other one was doing it”
- define area of responsibility
- a task (as in scrum) should have definition of done, which specifies it
- everyone needs to know what other people are responsible for
- scrum/kanban board can visualize it
- issue/ticket trackers can also work
at the end of a sprint planning, every task in the sprint backlog should have an assignee
source: [4]
dependencies
allocate resources
- resource is anything that is available with limits
- money, time, personnel, equipment, etc.
man-month
Man-month is a hypothetical unit of work representing the work done by one person in one month.
– Fred Brooks: The Mythical Man-Month [5]
![how developers spend their time – based on 295 responses | own figure based on data from [6]](figures/how_developers_spend_time.svg)
estimating time requirement of a task
- scrum (and agile in general) does not say anything about how to estimate (time)
- story points are often used instead
- (relative) unit of effort required to fully implement a product backlog item
- e.g., 1–5,
- Fibonacci: 1, 2, 3, 5, 8, 13…
- powers of 2: 1, 2, 4, 8, 16, 32…
“Story points reward team members for solving problems based on difficulty, not time spent. This keeps team members focused on shipping value, not spending time [7].”
planning poker
- is a consensus-based, gamified technique for estimation (in agile)
- product owner reads the user story
- members of the group make estimates by playing numbered cards face-down to the table, instead of speaking them aloud
- estimates are then discussed and high and low estimates are
explained
- repeat until estimates converge
- by hiding the figures, the group can avoid the cognitive bias of
anchoring
- where the first number spoken aloud sets a precedent for subsequent estimates
zero: done | tiny: ½ | easy: 1, 2, 3 | medium: 5, 8, 13 | large: 20, 40 | very large: 100 | ∞: huge
- optional cards
-
- ? means unsure
- ☕ means “I need a break”
source: [8]
estimation is guessing
- many developers do not like to estimate
- seemingly simple task can turn out to be difficult
- some difficulties are hard to foresee
- bad architectural decision
- “Architecture is the decisions that you wish you could get right early in a project.” – Ralph Johnson
- make educated guesses instead
- measure
- burn down charts, cumulative flow diagram
- infer from previous tasks
- measure
Brooks’s law
Adding manpower to a late software project makes it later.
Assigning more programmers to a project running behind schedule will make it even later. This is because the time required for the new programmers to learn about the project and the increased communication overhead will consume an ever-increasing quantity of available time [9].
