code review

Gergő Pintér, PhD

gergo.pinter@uni-corvinus.hu

V model [1]

  • each phase has output and a review process
    • errors are found at early stage
    • decreases the risk of failure
  • testing is done in a hierarchical perspective
based on guru99.com’s image

requirement analysis review

user story map
  • can be discussed / reviewed
  • even with a customer representative

user story “reviewed” in an issue tracker

architecture review

C4 diagrams as the output of the high level design

risk storming as a review process

code review

def query_progress(user_id:int) -> float:
    # establish connection
    con= sqlite3.connect("data.db")
    # build query
    progress_query = f"""
    SELECT
        lesson / 50.0 AS progress
    FROM activity
    WHERE
        user_id = {user_id} AND
        result = 'success'
    ORDER BY
        lesson DESC
    LIMIT 1
    ;
    """
    # execute query
    res =con.execute(progress_query)
    progress=res.fetchone()[0]
    return progress
  • does not respect style guide
  • does 3 things
    • establish DB connection
    • build query
    • execute query
  • contains separation comments
  • hard coded divisor
    • magic number

every work product can and should be reviewed

review types by formality

  • informal
  • walkthrough
  • technical
  • inspection

informal

  • asking a colleague to have a look at the code
    • they express their opinion and that’s all
    • no documentation
    • no process
  • pair programming is also a kind of constant informal review

walkthrough

  • not a formal process / review
  • led by the author(s)
  • the author(s) guide the participants through the work product to achieve a common understanding and to gather feedback
  • useful for higher level documents like requirement specification
    • e.g., risk storming, sprint review

source: What is Walkthrough in software testing? [2]

technical

  • less formal review
  • led by the trained moderator or a technical expert
  • often performed as a peer review without management participation
  • issues are found by experts (e.g., architects, designers)
  • technical reviews can vary from quite informal to very formal

source: What is Technical review in software testing? [3]

(Fagan) inspection [4]

process phases
  • planning: the inspection is planned by the moderator
  • overview meeting: the author describes the background of the WP
  • preparation: each inspector examines the work product to identify possible defects
  • inspection meeting: reader reads through the work product, part by part and the inspectors point out the defects
  • rework: the author makes changes to the work product according to the action plans from the inspection meeting
  • follow-up: the changes are checked to make sure everything is correct
roles
  • author: created the work product being inspected
  • moderator: the leader of the inspection, who plans and coordinates it
  • reader: reads through the documents, while the other inspectors then point out defects
  • recorder: documents the defects that are found during the inspection
  • inspector: examines the work product to identify possible defects

review types by formality – summary

type formality led by effort documentation
informal not formal noone minimal undocumented
walkthrough not formal1 authors very low normal, fault-finding
technical less formal trained moderator, not the author moderate more detailed
inspection most formal trained moderator high thorough; based on standards, checklists

code review – author’s perspective

  • be humble
  • open to feedback
  • the goal is to deliver higher quality code, not about arguing who was right
    • you and the reviewer are in the same side
  • you and the reviewer are not only talking about the code,
    • you are exchanging best practices and experiences
  • you can learn from the review

based on: Code Review Guidelines for Humans [5]

you are not your code

the subject of the code review is not you, but your code

based on: Code Review Guidelines for Humans [5]

code review – reviewer’s perspective

  • pay attention to the way you are formulating your feedback
    • phrasing is crucial for your feedback to be accepted
  • you and the author are in the same side
  • the goal is to deliver higher quality code, not about arguing who was right

source: Code Review Guidelines for Humans [5]

use I-messages

formulate your feedback as expressing your personal thoughts

  • I suggest
  • I think
  • I would
  • I believe
  • it’s hard for me to
  • for me, it seems like

it’s hard to argue against personal feelings since they are subjective

  • You-messages sound like an absolute statement
  • which will lead to a defensive stance
  • the author would argue with the reviewer instead of thinking about a change
  • so the author will be less open for the feedback

source: Code Review Guidelines for Humans [5]

talk about the code, not the coder

wrong
you hard-coded the total number of lessons into the query, which is wrong
right
the total number of lessons is hard-coded into the query, which may raise issues later

based on: Code Review Guidelines for Humans [5]

ask questions

  • asking questions feels less like a criticism as the author can answer the question
    • it can trigger a thought process which can lead to accepting the feedback
    • or the author can come up with a better solution
  • by asking questions you can reveal the intention behind a certain design decision
    • there may be a good reason for it

source: Code Review Guidelines for Humans [5]

refer to the author’s behavior, not their traits

wrong
You are sloppy when it comes to following the style guide.
Can’t you just configure your IDE properly?
right
I believe that you should pay more attention to the style guide.
Try to enable the auto-formatting in your IDE.
  • usually it’s not required to talk about the author at all in a code review
  • use I-messages, talk about the code or ask questions

based on: Code Review Guidelines for Humans [5]

OIR-rule of giving feedback

Observation
Describe your observations in an objective and neutral way. Refer to the behavior if you have to talk about the author. Using an I-message is often useful here.
e.g., “This method has 100 lines.”
Impact
Explain the impact that the observation has on you. Use I-messages.
e.g., “This makes it hard for me to grasp the essential logic of this method.”
Request
Use an I-message to express your wish or proposal.
e.g., “I suggest extracting the low-level-details into subroutines and give them expressive names.”

source: Code Review Guidelines for Humans [5]

three filters for feedback

always ask yourself, if your feedback is true, necessary and kind

(from April Wensel [6] via [5])

  • is it true?
    • avoid statements assuming an absolute truth
    • avoid the words “right”, “wrong”, “never”, “always” and “should”
    • refer to your opinion instead
  • is it necessary?
    • does the demanded requested change make the reviewed code better
  • it it kind?

source: Code Review Guidelines for Humans [5]

praise

  • don’t forget to express your appreciation if you have reviewed good code
  • praising doesn’t hurt you but will motivate the author
  • however, be specific and separate the prasie from the criticism

based on: Code Review Guidelines for Humans [5]

looks good to me

  • it’s okay to say: “Everything is good!”
  • no code change request is a valid outcome of a code review
    • you don’t have to find something in the code
  • a code can be not just okay, but worth to learn from it
  • however, when a reviewer too often says LGTM, it becomes fishy
    • especially if the review code turns out to be problematic later regardless the positive feedback

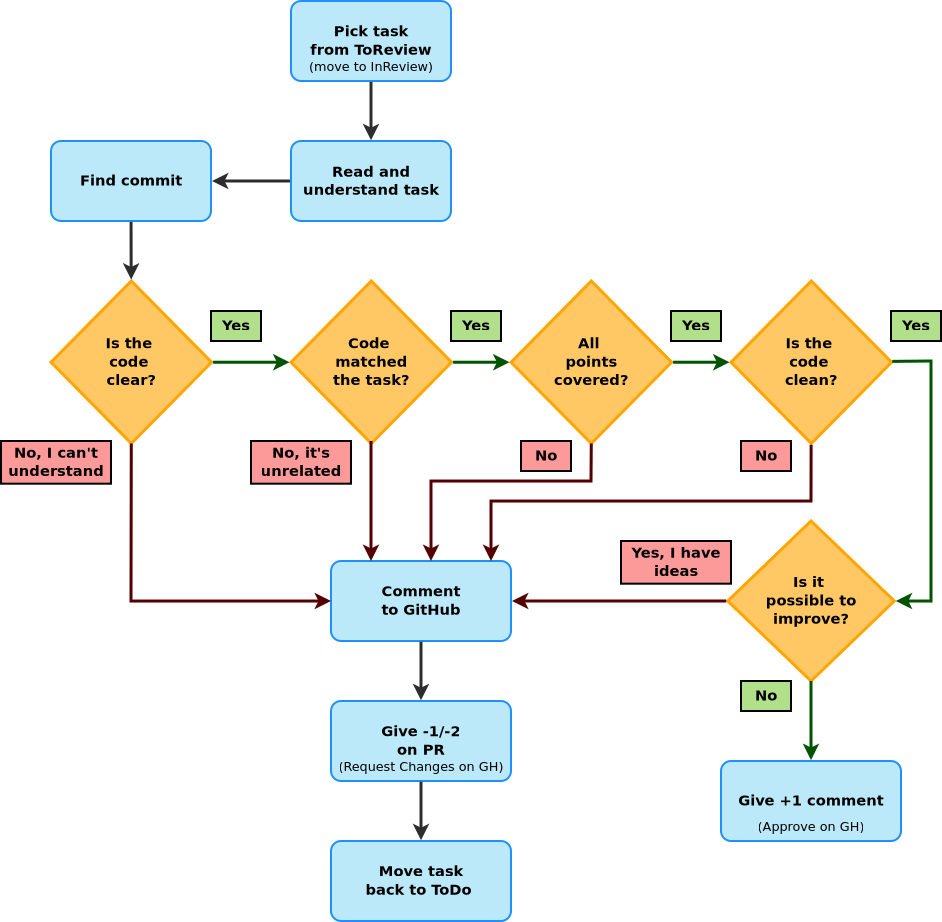

a review process

  • is it understandable (clear)
  • is it clean (no code smells)
  • does it match the task?
  • does it fulfill the task?
    • every DoD point covered?
  • is it possible to improve?

how can you tell if the code matches the task?

how to write the commit message?

  1. Separate subject from body with a blank line
  2. Limit the subject line to 50 characters
  3. Capitalize the subject line
  4. Do not end the subject line with a period
  5. Use the imperative mood in the subject line
  6. Wrap the body at 72 characters
    • least important
  7. Explain what and why not how
  8. Reference the issue!
    • my addition for traceability
    • GH-33 (GitHub), GL-33 (GitLab),
    • or custom identifier for a project (Jira, JetBrains)
Randall Munroe | CC BY-NC 2.5 | source

source: How to Write a Git Commit Message [7]

review in numbers

  • don’t review more than 200 to 400 lines of code at a time
  • don’t review for more than 60 minutes at a time
  • during an inspection session, the rate should be under 500 LOC per hour
  • use informal reviews
    • less effort, although very effective

source: [8]

#include <stdio.h>
main()
{
    int a,b,c;
    int count = 1;
    for (b=c=10;a="- FIGURE?, UMKC,XYZHello Folks,\
    TFy!QJu ROo TNn(ROo)SLq SLq ULo+\
    UHs UJq TNn*RPn/QPbEWS_JSWQAIJO^\
    NBELPeHBFHT}TnALVlBLOFAkHFOuFETp\
    HCStHAUFAgcEAelclcn^r^r\\tZvYxXy\
    T|S~Pn SPm SOn TNn ULo0ULo#ULo-W\
    Hq!WFs XDt!" [b+++21]; )
    for(; a-- > 64 ; )
    putchar ( ++c=='Z' ? c = c/ 9:33^b&1);
    return 0;
}

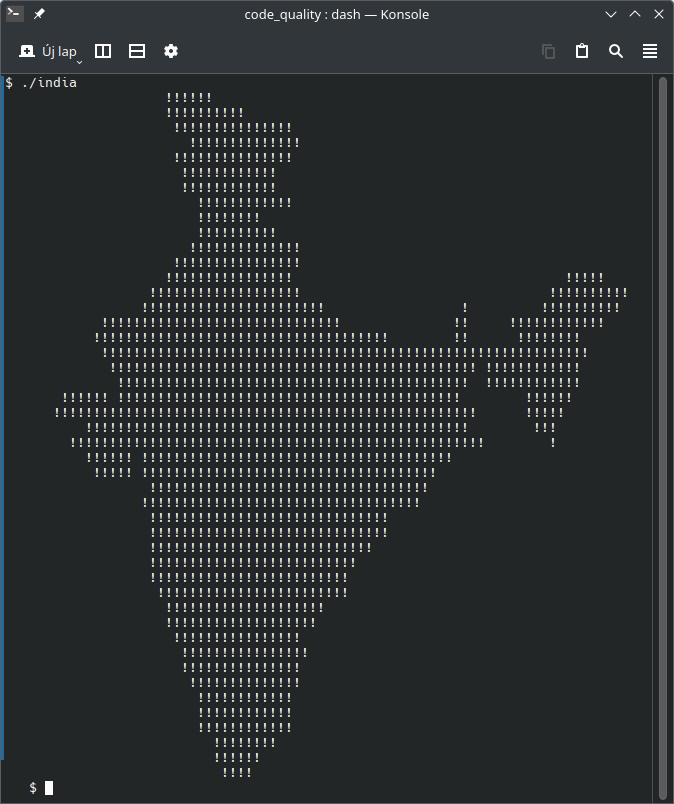

via How does this code generate the map of India?

#include "stdio.h"
int main (void) {
    int a=10, b=0, c=10;
    char* bits ="TFy!QJu ROo TNn(ROo)SLq SLq ULo+UHs UJq TNn*R\
    Pn/QPbEWS_JSWQAIJO^NBELPeHBFHT}TnALVlBLOFAkHFOuFETpHCStHAU\
    FAgcEAelclcn^r^r\\tZvYxXyT|S~Pn SPm SOn TNn ULo0ULo#ULo-WH\
    q!WFs XDt!";
    a = bits[b];
    while (a != 0) {
        a = bits[b];
        b++;
        while (a > 64) {
            a--;
            if (++c == 'Z') {
                c /= 9;
                putchar(c);
            } else {
                putchar(33 ^ (b & 0x01));
            }
        }
    }
    return 0;
}

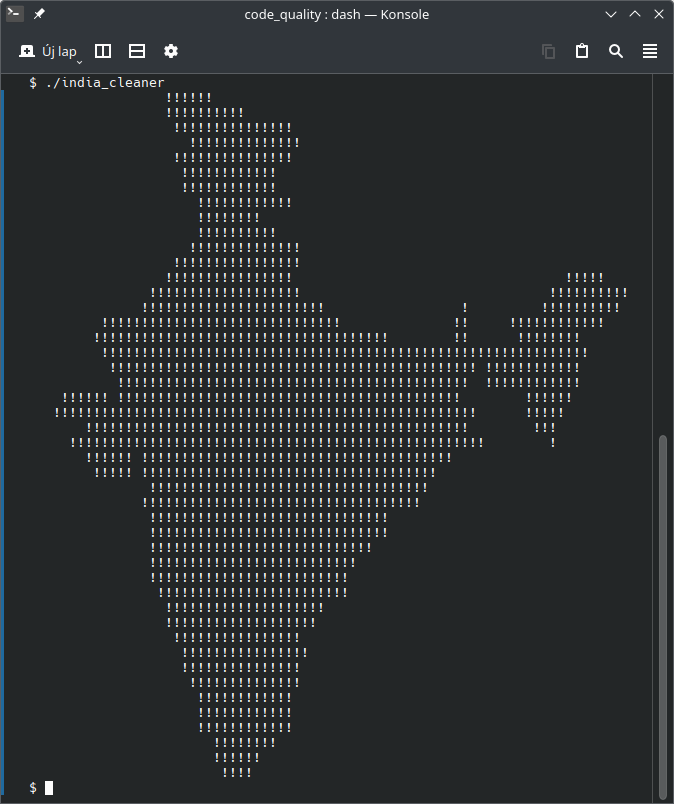

a less obfuscated version (with explanation)
by bta CC BY-SA 2.5

references

[1]
K. Forsberg and H. Mooz, “The relationship of system engineering to the project cycle,” Center for Systems Management, vol. 5333, 1991.
[2]
Try QA, “What is walkthrough in software testing?” http://tryqa.com/what-is-walkthrough-in-software-testing .
[3]
Try QA, “What is technical review in software testing?” http://tryqa.com/what-is-technical-review-in-software-testing .
[4]
Wikipedia contributors, “Software inspection — Wikipedia, the free encyclopedia.” https://en.wikipedia.org/w/index.php?title=Software_inspection&oldid=1060854286, 2021.
[5]
P. Hauer, “Code review guidelines for humans.” https://phauer.com/2018/code-review-guidelines/ , 31-Jul-2018.
[6]
A. Wensel, “Compassionate (yet candid) code reviews.” https://www.slideshare.net/slideshow/compassionate-yet-candid-code-reviews/113119451 , 06-Sep-2018.
[7]
C. Beams, “How to write a git commit message.” https://cbea.ms/git-commit/ , 31-Aug-2014.
[8]
Smartbear, “Best practices for code review.” https://smartbear.com/learn/code-review/best-practices-for-peer-code-review .

  1. Sometimes it can be somewhat formal.↩︎
